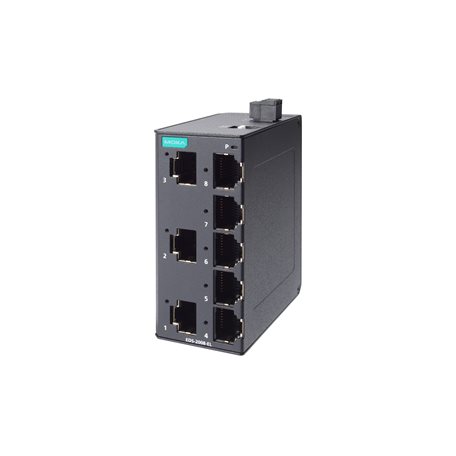

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
The EDS-2008-EL Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable for PROFINET networks.
| Ethernet Interface | |
|---|---|
| 10/100BaseT(X) Ports (RJ45) |
EDS-2008-EL: 8 EDS-2008-EL-M-ST: 7 EDS-2008-EL-M-SC: 7 |
| 100BaseFX Ports (Multi-mode) |

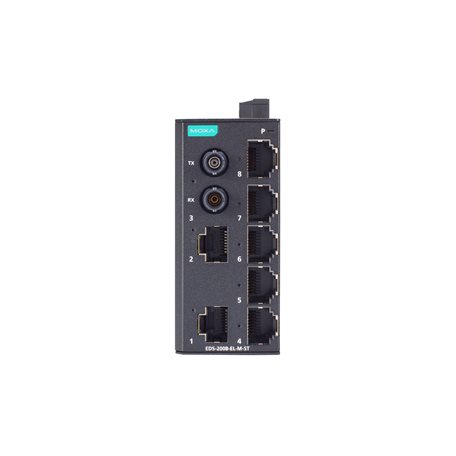

EDS-2008-EL-M-ST: 1 × ST EDS-2008-EL-M-SC: 1 × SC |
| Features | Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 2 K |
| Packet Buffer Size | 768 kbits |
| DIP Switch Configuration | |
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
| Power Parameters | |
| Connection | 1 removable 2-contact terminal block |
| Input Current |
EDS-2008-EL: 0.052 A @ 24 VDC EDS-2008-EL-M-ST / EDS-2008-EL-M-SC: 0.082 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
| Weight | 169 g (0.37 lb) |
| Housing | Metal |
| Dimensions |
EDS-2008-EL: 36 × 81 × 65 mm (1.4 × 3.19 × 2.56 in) EDS-2008-EL-M-ST: 36 × 81 × 70.9 mm (1.4 × 3.19 × 2.79 in) (w/ connector) EDS-2008-EL-M-SC: 36 × 81 × 68.9 mm (1.4 × 3.19 × 2.71 in) (w/ connector) |
| Environmental Limits | |
| Operating Temperature |
EDS-2008-EL / EDS-2008-EL-M-ST / EDS-2008-EL-M-SC: -10 to 60°C (14 to 140°F) EDS-2008-EL-T / EDS-2008-EL-M-ST-T / EDS-2008-EL-M-SC-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F, package included) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| Safety | UL 61010-2-201, EN 62368-1 |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz–1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| MTBF | |
| Time |
EDS-2008-EL: 3,696,394 hrs EDS-2008-EL-M-ST / EDS-2008-EL-M-SC: 3,329,688 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | See Moxa Warranty |
