The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.
| Ethernet Interface | |
|---|---|
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |

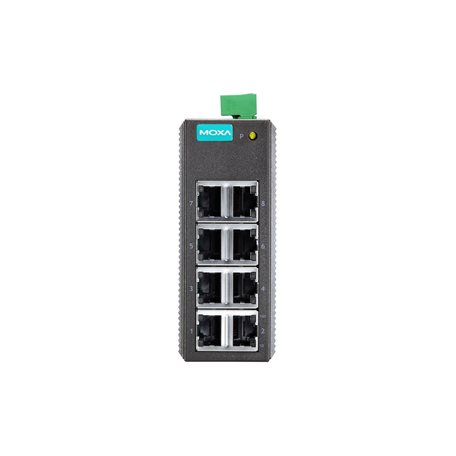

| 10/100BaseT(X) Ports | EDS-208: 8 EDS-208-M-SC: 1 EDS-208-M-ST: 1 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |

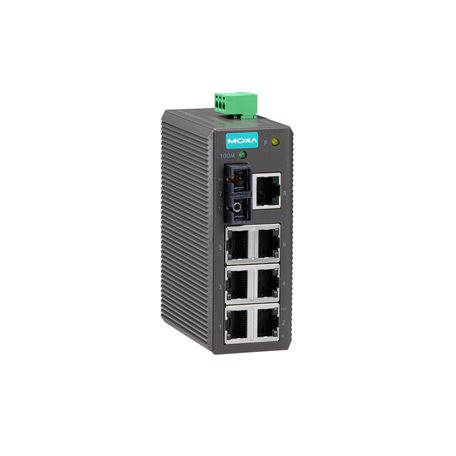

| 100BaseFX (SC) | EDS-208-M-SC: 1 |

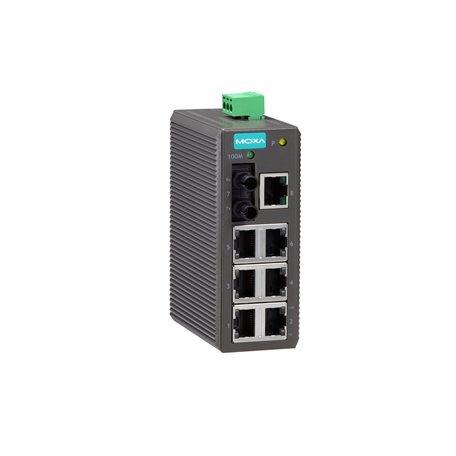

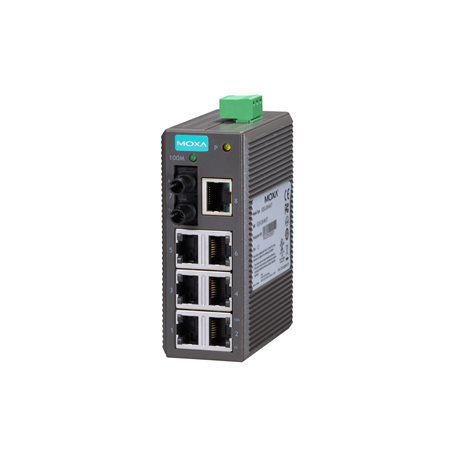

| 100BaseFX (ST) | EDS-208-M-ST: 1 |
| Optical Fiber | Supported |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 2 K |
| Packet Buffer Size | 768 kbits |
| Power Parameters | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | EDS-208: 0.07 A @ 24 VDC EDS-208-M: 0.1 A @ 24 VDC |
| Connection | 1 removable 3-contact terminal block |
| Overload Protection | 2.5 A @ 24 VDC |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 40 × 100 × 86.5 mm (1.57 × 3.94 × 3.41 in) |
| Weight | 170 g (0.38 lb) |
| Installation | DIN-rail mounting |
| Environmental Limits | |
| Operating Temp | -10 to 60°C (14 to 140°F) |
| Storage Temp | -40 to 85°C (-40 to 185°F) |
| Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| Safety | UL 508, UL 60950-1, EN 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz–1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| MTBF | |
| Time | EDS-208: 3,902,526 hrs EDS-208-M: 3,562,556 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | See Moxa Warranty |
