The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, Modbus TCP and PROFINET protocols for device management and monitoring
EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
PROFINET GSDML file and SIMATIC STEP 7 device icons available
Port mirroring for online debugging
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management security
Bandwidth management to prevent unpredictable network status
| Ethernet Interface | |
|---|---|
| 10/100BaseT(X) Ports (RJ45) | EDS-405A, 405A-EIP/PN/PTP: 5 EDS-405A-MM-SC/MM-ST/SS-SC: 3 All models support: |
| 100BaseFX Ports (multi-mode SC) | EDS-405A-MM-SC: 2 |

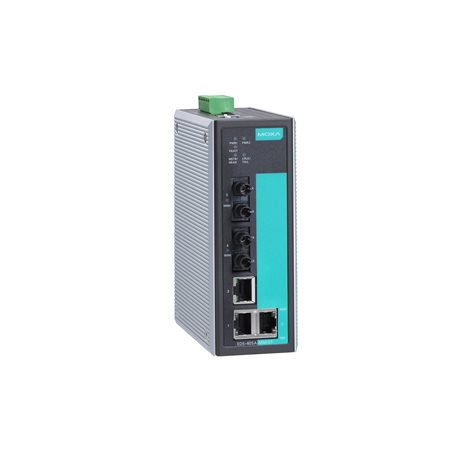

| 100BaseFX Ports (multi-mode ST) | EDS-405A-MM-ST: 2 |
| 100BaseFX Ports (single-mode SC) | EDS-405A-SS-SC: 2 |
| Standards | |
| IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseT/FX), IEEE 802.3x (Flow Control), IEEE 802.1D-2004 (STP), IEEE 802.1p (CoS), IEEE 802.1Q (VLAN), IEEE 802.1w (RSTP) | |
| Ethernet Software Features | |
| Filter | 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP EDS-405A-PN: PROFINET IO Device |
| Management | BOOTP, DHCP (Opt. 66/67/82), DHCP Srv/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP (v1/v2c/v3), Syslog, Telnet, TFTP |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE, RMON (1,2,3,9), RSTP MIB |
| Redundancy | RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, NTP auth, Port Lock, SNMPv3, SSH, Trust access control |
| Time | NTP Server/Client, SNTP EDS-405A-PTP: IEEE 1588v2 PTP |
| Switch Properties | |
| IGMP Groups | 256 |
| MAC Table Size | 2K (EDS-405A, -EIP, -MM-SC/ST, -PN, -SS-SC) 8K (EDS-405A-PTP) |
| Max VLANs | 64 |
| Packet Buffer | 1 Mbit |
| Priority Queues | 4 |
| VLAN Range | VID 1–4094 |
| Serial Interface | |
| Console Port | RS-232 (TxD, RxD, GND), 10-pin RJ45, 115200 n,8,1 |
| DIP Switch | |
| Ethernet | Turbo Ring, Master, Coupler, Reserve |
| I/O Interface | |
| Alarm Contact | Relay output, 1 A @ 24 VDC |
| Power | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | 9.6–60 VDC |
| Input Current | EDS-405A / -EIP / -PN / -MM-SC/ST / -SS-SC: 0.594A @12V, 0.286A @24V, 0.154A @48V EDS-405A-PTP: 0.23A @24V |
| Protection | Overload & Reverse Polarity Supported |
| Connection | 1 removable 6-contact terminal block |
| Physical | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 53.6 × 135 × 105 mm |
| Weight | EDS-405A-EIP/MM-SC/ST/PN/SS-SC: 650 g EDS-405A-PTP: 820 g |
| Installation | DIN-rail, optional wall mount |
| Environmental | |
| Operating Temp | -10 to 60 °C (Standard) -40 to 75 °C (Wide Temp) |
| Storage Temp | -40 to 85 °C |
| Humidity | 5–95% (non-condensing) |
| Certifications | |
| Safety | UL 508; Non-PTP: UL 60950-1, EN 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | Non-PTP: IEC 61000-4-2 (6kV/8kV), IEC 61000-4-3 (20V/m), -4-4 (2kV), -4-5 (2kV), -4-6 (10V) PTP: IEC 61000-4-2 (4kV/8kV), IEC 61000-4-3 (3V/m), -4-4 (0.5kV), -4-5 (0.5–1kV), -4-6 (3V) |
| Hazardous | Non-PTP: ATEX, Class I Div 2 |
| Railway | Non-PTP: EN 50121-4 |
| Traffic | Non-PTP: NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Maritime | Non-PTP: DNV, LR |
| MTBF | |
| Time | EDS-405A, -EIP, -PN: 1,547,941 hrs EDS-405A-MM-SC/ST/SS-SC: 1,429,327 hrs EDS-405A-PTP: 1,316,464 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty | 5 years See www.moxa.com/warranty |
