The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, Modbus TCP and PROFINET protocols for device management and monitoring
EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
PROFINET GSDML file and SIMATIC STEP 7 device icons available
Port mirroring for online debugging
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management security
Bandwidth management to prevent unpredictable network status
| Ethernet Interface | |
|---|---|
| 10/100BaseT(X) Ports |

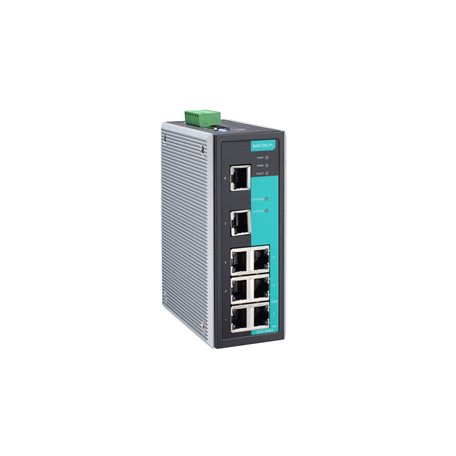

EDS-408A/408A-T, EDS-408A-EIP/PN: 8 EDS-408A-MM-SC/MM-ST/SS-SC: 6 EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC: 5 All models support auto negotiation, full/half duplex, auto MDI/MDI-X |
| 100BaseFX Ports |

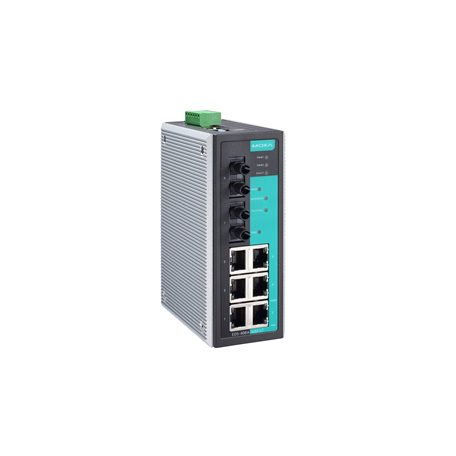

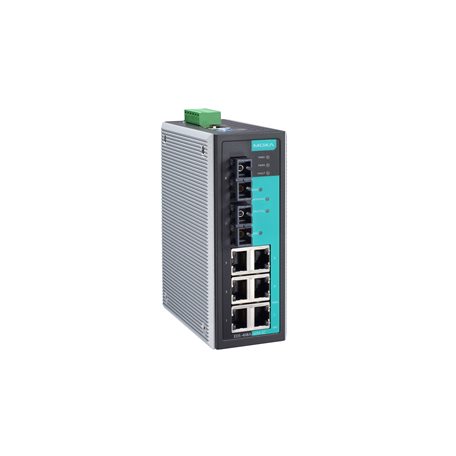

Multi-mode SC: 2 (MM-SC, 2M1S-SC), 3 (3M-SC) Multi-mode ST: 2 (MM-ST), 3 (3M-ST) Single-mode SC: 2 (SS-SC, 1M2S-SC), 1 (2M1S-SC), 3 (3S-SC, 3S-SC-48) |
| Standards |
IEEE 802.3 (10BaseT), 802.3u (100BaseT(X), 100BaseFX), 802.3x (Flow Control), 802.1D-2004 (STP), 802.1p (Class of Service), 802.1Q (VLAN), 802.1w (RSTP) |
| Ethernet Software Features | |
| Filter | 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP EDS-408A-PN: PROFINET IO Device (Slave) |
| Management | Back Pressure Flow Control, BOOTP, DHCP (Option 66/67/82, Server/Client), Flow Control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, Syslog, Telnet, TFTP, SMTP, SNMP Inform, SNMP v1/v2c/v3 |
| MIB | MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE, RMON (Groups 1,2,3,9), RSTP MIB |
| Redundancy Protocols | RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, NTP authentication, Port Lock, SNMPv3, SSH, Trust access control |
| Time Management | NTP Server/Client, SNTP |
| Switch Properties | |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
| Serial Interface | |
| Console Port | RS-232 (TxD, RxD, GND), 10-pin RJ45, 115200, n,8,1 |
| DIP Switch Configuration | |
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
| Input/Output Interface | |
| Alarm Contact Channels | Relay output, 1 A @ 24 VDC |
| Power Parameters | |
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage |
Redundant dual inputs 12/24/48 VDC (most models) ±24/±48 VDC (3S-SC-48 models) |
| Operating Voltage | 9.6 to 60 VDC (standard models) ±19 to ±60 VDC (3S-SC-48) |
| Input Current |
EDS-408A/EIP/PN/MM/SS models: 0.61A @ 12V, 0.3A @ 24V, 0.16A @ 48V 3M/3S/1M2S/2M1S: 0.73A @ 12V, 0.35A @ 24V, 0.18A @ 48V 3S-SC-48: 0.33A @ 24V, 0.17A @ 48V |
| Overload / Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Housing | Metal, IP30 |
| Dimensions | 53.6 × 135 × 105 mm (2.11 × 5.31 × 4.13 in) |
| Weight | 650 g (standard), 890 g (3M/3S/1M2S/2M1S models) |
| Installation | DIN-rail or wall-mount (optional kit) |
| Environmental Limits | |
| Operating Temp | -10 to 60°C (Standard) -40 to 75°C (Wide Temp) |
| Storage Temp | -40 to 85°C |
| Humidity | 5 to 95% (non-condensing) |
| Standards & Certifications | |
| Safety | UL 508 (all) UL 6095-01, EN 62368-1 (selected models) |
| EMC/EMI | EN 55032/35, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2/3/4/5/6/8 |
| Hazardous Locations | ATEX, Class I Division 2, IECEx (selected models) |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 (selected models) |
| Reliability | Vibration: IEC 60068-2-6 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-31 Maritime: DNV, NK, LR, ABS (varies) |
| MTBF | |
| EDS-408A/EIP/PN | 1,339,439 hrs |
| MM/SS/3M/3S/1M2S/2M1S | 1,253,072 hrs |
| 3S-SC-48 | 989,940 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | www.moxa.com/warranty |
