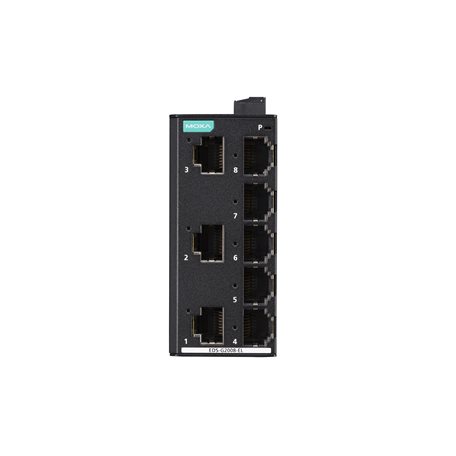

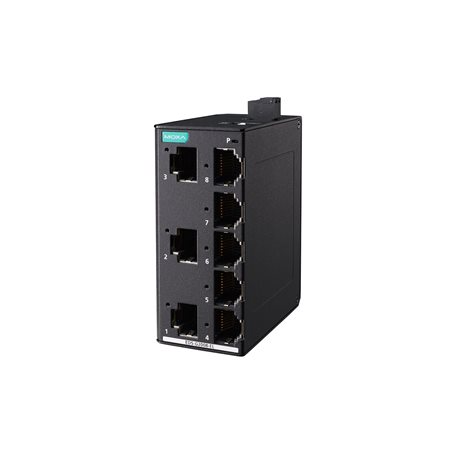

The EDS-G2008-EL series of industrial Ethernet switches have up to eight Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-G2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-G2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
| Ethernet Interface | |
|---|---|
| 10/100/1000BaseT(X) Ports | 8 × RJ45 |
| 10/100BaseT(X) Ports | Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 4 K |
| Packet Buffer Size | 1.5 Mbits |
| DIP Switch Configuration | |
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
| Power Parameters | |
| Connection | 1 removable 2-contact terminal block |
| Input Current | 0.33 A (max.) |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
| Weight | 180 g (0.4 lb) |
| Housing | Metal |
| Dimensions | 36 × 81 × 65 mm (1.42 × 3.19 × 2.56 in) |
| Environmental Limits | |
| Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models (-T): -40 to 75°C (-40 to 167°F) |
| Humidity | 5 to 95% (non-condensing) |
| Storage Temp | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz–1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| MTBF | |
| Time | 3,404,784 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | See Moxa Warranty |
