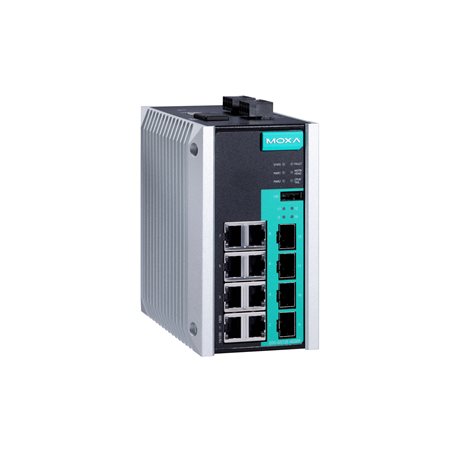

The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Command line interface (CLI) for quickly configuring major managed functions
Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
Port mirroring for online debugging
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic warning by exception through email and relay output
| Input/Output Interface | |
|---|---|
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Ethernet Interface | |
| 10/100/1000BaseT(X) Ports (RJ45) | EDS-G512E-4GSFP: 8 EDS-G512E-4GSFP-T: 8 Auto negotiation speed, Full/Half duplex, Auto MDI/MDI-X |
| PoE Ports | EDS-G512E-8PoE-4GSFP: 8 EDS-G512E-8PoE-4GSFP-T: 8 |
| 100/1000BaseSFP Slots | 4 |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D-2004, 802.1w, 802.1s, 802.1p, 802.1Q, 802.1X, 802.3ad (LACP) |
| Ethernet Software Features | |
| Filter | 802.1Q VLAN, BPDU Filter/Guard, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Management | LLDP, Flow Control, BOOTP, DHCP (Option 66/67/82), Port Mirror, RARP, RMON, Syslog, SNMP v1/v2c/v3, Telnet, TFTP, SCP, SMTP, IPv4/IPv6 |
| MIB | Ethernet-like, MIB-II, Bridge, P-BRIDGE, Q-BRIDGE, RMON Groups 1/2/3/9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB, Sticky MAC, NTP Auth, IP/MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS |
| Time Management | NTP Server/Client, SNTP |
| Switch Properties | |
| IGMP Groups | 2048 |
| Jumbo Frame Size | 9.6 KB |
| MAC Table Size | 8 K |
| Max. VLANs | 256 |
| Packet Buffer Size | 4 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | 1 to 4094 |
| Interfaces | |
| USB Storage Port | USB Type A |
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M, 1000M, 100/1000M (SFP), MSTR/HEAD, CPLR/TAIL, smart PoE LED (PoE models) |
| Console Port | USB-serial (Type B) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Power Parameters | |
| Connection | 2 removable 4-contact terminal blocks |
| Input Current | EDS-G512E-4GSFP: 0.34 A @ 24 VDC EDS-G512E-8PoE-4GSFP: 5.30 A @ 48 VDC |
| Input Voltage | EDS-G512E-4GSFP: 12/24/48/-48 VDC EDS-G512E-8PoE-4GSFP: 48 VDC Redundant dual inputs |
| Operating Voltage | EDS-G512E-4GSFP: 9.6–60 VDC EDS-G512E-8PoE-4GSFP: 44–57 VDC (>50 V recommended for PoE+) |
| Protections | Overload current protection, Reverse polarity protection |
| Power Budget | EDS-G512E-8PoE-4GSFP: Max 240 W total, 36 W per PoE port |
| Power Consumption | EDS-G512E-8PoE-4GSFP: Max 14.36 W (no PD load) |
| Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 79.2 × 135 × 137 mm (3.1 × 5.3 × 5.4 in) |
| Weight | EDS-G512E-4GSFP: 1,440 g EDS-G512E-8PoE-4GSFP: 1,540 g |
| Installation | DIN-rail, Wall mounting (optional kit) |
| Environmental Limits | |
| Operating Temperature | -10 to 60°C (Standard), -40 to 75°C (Wide Temp.) |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95% (non-condensing) |
| Standards & Certifications | |
| Safety | UL 508, EN 62368-1 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | FCC Part 15B Class A |
| EMS | IEC 61000-4-2/3/4/5/6/8, model-dependent surge and EFT ratings |
| Hazardous Locations | ATEX, Class I Division 2 |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Maritime | DNV, LR, ABS, NK |
| MTBF | |
| EDS-G512E-4GSFP(-T) | 803,337 hrs |
| EDS-G512E-8PoE-4GSFP(-T) | 788,215 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Period | 5 years |
| Details | www.moxa.com/warranty |
