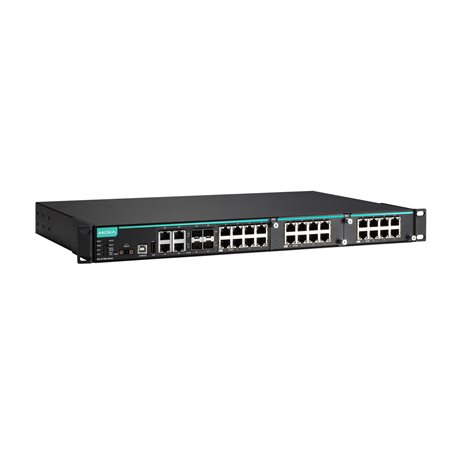

The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A and IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones.
IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems.
Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
IEEE 802.3ad, LACP for optimum bandwidth utilization
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Automatic recovery of connected device’s IP addresses
Line-swap fast recovery
Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator
| Input/Output Interface | |
|---|---|
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45) | 8 |
| Combo Ports | 4 (10/100/1000BaseT(X) or 100/1000BaseSFP) |
| Module Slots | 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP |
| Standards | IEEE 802.1D-2004 (Spanning Tree Protocol) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN Tagging) IEEE 802.1s (Multiple Spanning Tree Protocol) IEEE 802.1w (Rapid Spanning Tree Protocol) IEEE 802.1X (Authentication) IEEE 802.3 (10BaseT) IEEE 802.3ab (1000BaseT(X)) IEEE 802.3ad (Port Trunk with LACP) IEEE 802.3u (100BaseT(X) and 100BaseFX) IEEE 802.3x (Flow Control) IEEE 802.3z (1000BaseSX/LX/LHX/ZX) |
| Ethernet Software Features | |
| Management | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| Filter | 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Redundancy Protocols | Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON |
| Security | Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, NTP authentication, Port Lock, RADIUS, SSH, TACACS+ |
| Time Management | NTP Server/Client, SNTP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET |
| MIB | Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Switch Properties | |
| IGMP Groups | 2048 |
| Jumbo Frame Size | 9.6 KB |
| MAC Table Size | 16 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 12 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
| USB Interface | |
| Storage Port | USB Type A |
| Serial Interface | |
| Console Port | USB-serial console (Type B connector) |
| Power Parameters | |
| Input Voltage | 24/48 VDC, 110/220 VAC depending on model (including redundant dual inputs) |
| Operating Voltage | 18–36 VDC, 36–72 VDC, 85–264 VAC depending on model |
| Input Current | 1.1/0.6 A @ 24/48 VDC 0.46/0.31 A @ 110/220 VAC |
| Power Consumption (Max.) | 26.4/28.8 W @ 24/48 VDC 29.28/31.92 W @ 110/220 VAC |
| Total PoE Power Budget | Maximum 720 W @ 48 VDC (IKS-6728A-PoE series) |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| IP Rating | IP30 |
| Dimensions | 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) |
| Weight | 4100 g (9.05 lb) |
| Installation | Rack mounting |
| Environmental Limits | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| Safety | EN 60950-1, UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4 |
| Maritime | ABS, CCS, DNV, LR, NK (non-PoE models) |
| Freefall | IEC 60068-2-32 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| MTBF | |
| Time | IKS-6728A-4GTXSFP-24-24-T: 836,446 hrs IKS-6728A-4GTXSFP-24-T: 836,446 hrs IKS-6728A-4GTXSFP-48-48-T: 837,778 hrs IKS-6728A-4GTXSFP-48-T: 837,778 hrs IKS-6728A-4GTXSFP-HV-HV-T: 914,783 hrs IKS-6728A-4GTXSFP-HV-T: 927,981 hrs IKS-6728A-8PoE-4GTXSFP-48-48-T: 650,626 hrs IKS-6728A-8PoE-4GTXSFP-48-T: 650,626 hrs IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 697,934 hrs IKS-6728A-8PoE-4GTXSFP-HV-T: 704,618 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | See Moxa Warranty |
