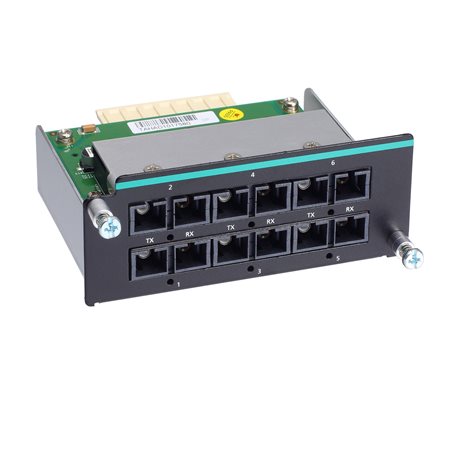

IM-6700A fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability. The modular design of the IKS-6700A Series ensures that the switches meet multiple application requirements.
| Ethernet Interface | |
|---|---|
| 100BaseFX Ports (multi-mode SC) | IM-6700A-2MSC4TX: 2 IM-6700A-4MSC2TX: 4 IM-6700A-6MSC: 6 |
| 100BaseFX Ports (multi-mode ST) | IM-6700A-2MST4TX: 2 IM-6700A-4MST2TX: 4 IM-6700A-6MST: 6 |
| 100BaseFX Ports (single-mode SC) | IM-6700A-2SSC4TX: 2 IM-6700A-4SSC2TX: 4 IM-6700A-6SSC: 6 |
| 100BaseSFP Slots | IM-6700A-8SFP: 8 |
| 10/100BaseT(X) Ports (RJ45) | IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 2 IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 4 IM-6700A-8TX: 8 |
| PoE Ports (10/100BaseT(X), RJ45) | IM-6700A-8PoE: Auto negotiation speed, Full/Half duplex mode |
| Supported Functions | Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| PoE Standard | IEEE 802.3af/at for PoE/PoE+ output |
| Power Parameters | |
| Power Consumption | IM-6700A-8TX/8PoE: 1.21 W (max.) IM-6700A-8SFP: 0.92 W (max.) IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 3.19 W (max.) IM-6700A-4SSC2TX/4MSC2TX/4MST2TX: 5.28 W (max.) IM-6700A-6MST/6SSC/6MSC: 7.57 W (max.) |
| Physical Characteristics | |
| Weight | IM-6700A-8TX: 225 g (0.50 lb) IM-6700A-8SFP: 295 g (0.65 lb) IM-6700A-2MSC4TX/2MST4TX/2SSC4TX/4MSC2TX/4MST2TX/4SSC2TX: 270 g (0.60 lb) IM-6700A-6MSC/6SSC/6MST: 390 g (0.86 lb) IM-6700A-8PoE: 260 g (0.58 lb) |
| MTBF | |
| Time | IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 7,356,096 hrs IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 4,359,518 hrs IM-6700A-6MSC/6MST/6SSC: 3,153,055 hrs IM-6700A-8PoE: 3,525,730 hrs IM-6700A-8SFP: 5,779,779 hrs IM-6700A-8TX: 28,409,559 hrs |
| Standards | Telcordia (Bellcore), GB |
| Warranty | |
| Warranty Period | 5 years |
| Details | See Moxa Warranty |
